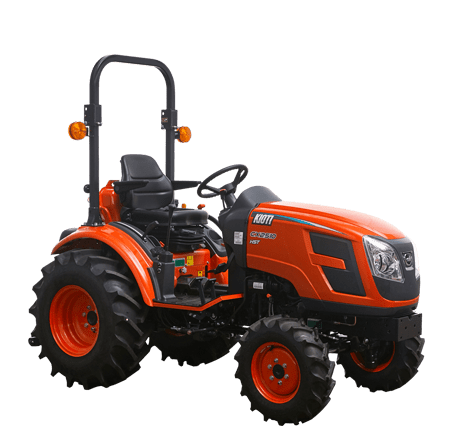

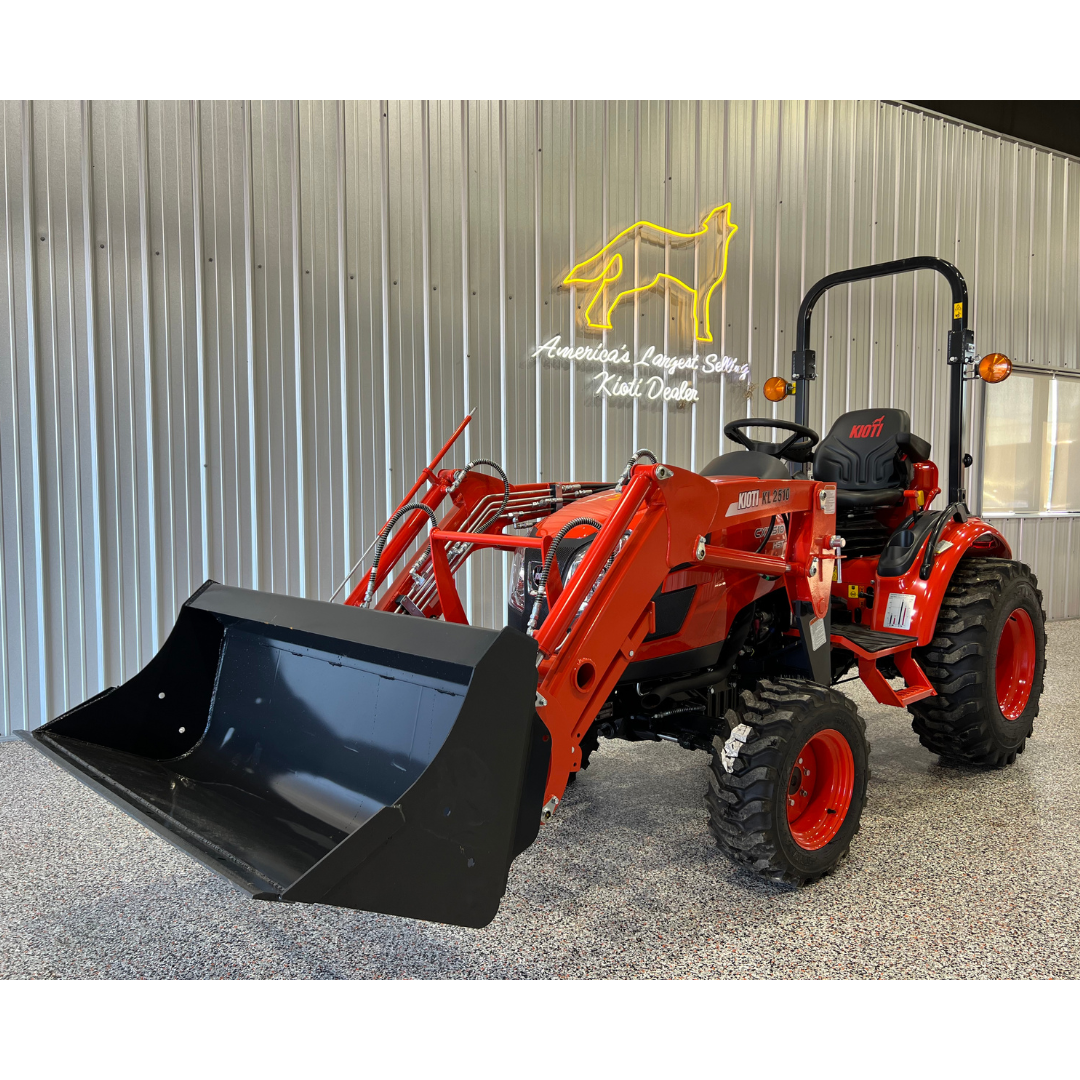

KIOTI CX2510 with Factory Loader

615-442-6738
sales@lsetractor.com
Tractor and loader from $21,164.00 PLUS many discounts, factory incentives, and low APR financing options!
Due to restrictive pricing policies by manufacturers, these are all MSRP. For our most competitive pricing, please give us a call or submit an inquiry and we will be happy to give you our low pricing that we are known for!
HST TRANSMISSION AVAILABLE
KIOTI KB2465 SUBFRAME MOUNTED BACKHOE FROM $8,905.00
KIOTI KM2560 MID MOUNTED MOWER: $4,025.00

INTERESTED? Fill out the form below and our sales team will be in contact!

Main Features

  • Engine Gross Power: 24.5 hp (18.2 kW)
  • PTO Type: Transmission
  • Transmission Type: Manual
  • Shuttle: Dry Single
  • Tilt Wheel with Power Steering
  • Illuminated Dashboard
  • Comfortable Seat with Suspension
  • Single Lever Joystick
  • USB and Power Socket
  • Rear PTO with adjustable three-point hitch
  • High Capacity Hydraulic Pump



Transmission

Transmission Type 6X2 Manual Transmission
Main Gear Manual
No. Travel Speeds 6F/2R
Min. Travel Speed 0.75 mph (1.22 km/h)
Max. Travel Speed 10.8 mph (19.07 km/h)

Power Take-Off (PTO)

PTO Type Transmission Manual
PTO Power 19.3 hp (14.4 kW)
Rear PTO Speeds 540 rpm
Mid PTO Speeds 2,000 rpm (Optional)

Brakes and Clutch

Brakes Wet Disc Type
Clutch Dry Single Stage

Dimensions w/ Ag Tire

Length w/ 3-point 109.08 in. (2,790 mm)
Width 49.4 in. (1,256 mm)
Height from Top of ROPS 82.8 in. (2,103 mm)
Wheelbase 59.8 in. (1,520 mm)
Ground Clearance 13.4 in. (340 mm)
Front Tread Ag Tires - Min 38.1 in. (968 mm)
Rear Tread Ag Tires - Min 37.4 in. (951 mm)
Min. Turning Radius w/Brake 8.3 ft. (2.53 m)

Hydraulics

Total Pump Flow 11.3 gpm (42.9 L/min)

3-Point Hitch

Standard Category Category 1
Lift Capacity, 24" aft of hitch 1,203 lbs (546 kg)
Position
