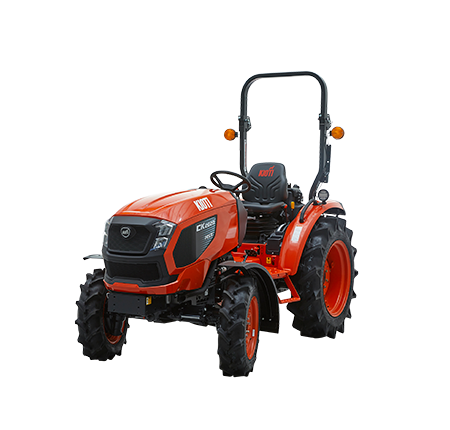

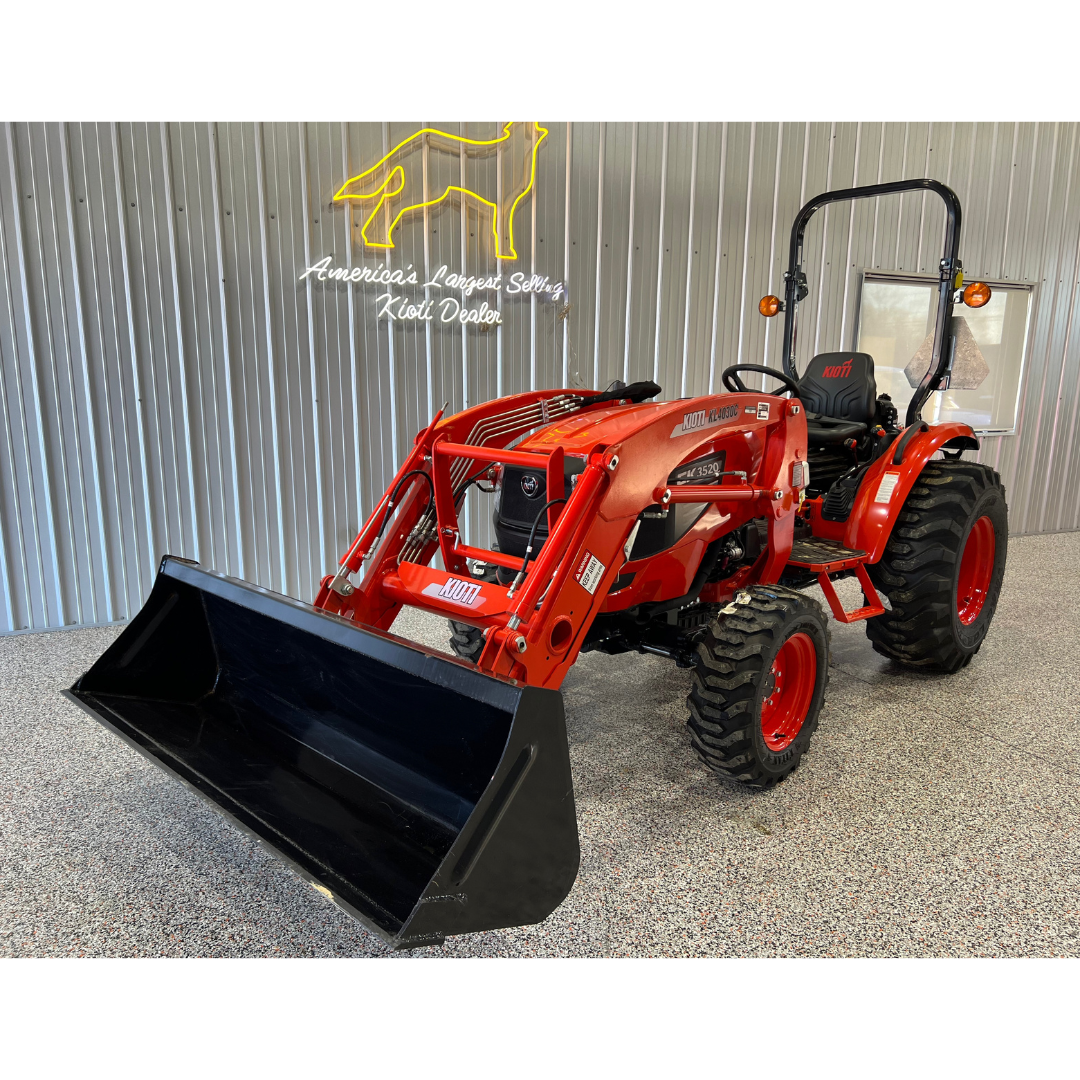

KIOTI CK3520 HST with Factory Loader
615-442-6738
sales@lsetractor.com
Tractor and loader from $29,676.00 PLUS many discounts, factory incentives, and low APR financing options!
HST TRANSMISSION AVAILABLE
KIOTI KB2475L SUBFRAME MOUNTED BACKHOE FROM $9,759.00
INTERESTED? Fill out the form below and our sales team will be in contact!
Share this with your friends!
Main Features
- Engine Gross Power: 34.9 hp (26 kW)
- PTO Type: Live
- Transmission Type: Hydrostatic
- Shuttle: Dry Single Stage
- KIOTI Diesel Engine
- Dual Pedal HST
- Power Steering
- Foldable ROPS
- High Capacity Hydraulic Pump
- Single Lever Joystick
- NOTE: Front fenders not available in North America.
Transmission
| Transmission Type | HST Transmission |
| Main Gear | Manual |
| No. of Travel Speeds - Forward / Reverse | Infinite, 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 14.88 mph (23.91 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Live |
| PTO Power | 28.9 hp (21.6 kW) |
| Rear PTO Speeds (1st) | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 120.87 in. (3,070 mm) |
| Width | 54.5 in. (1,385 mm) |
| Height from Top of ROPS | 92.91 in. (2,360 mm) |
| Wheelbase | 65.7 in. (1,670 mm) |
| Ground Clearance | 13.39 in. (340 mm) |
| Front Tread Ag Tires - Min | 48.22 in (1,225 mm) |
| Rear Tread Ag Tires - Min | 47.04 in. (1,210 mm) |
| Min. Turning Radius w/ Brake | 107.48 in. (2,730 mm) |
Hydraulics
| Total Pump Flow | 11.73 gpm (44.4 L/min) |
3-Point Hitch
| Standard Category | Category 1 |
| Lift Capacity, 24" aft of hitch | 1,631 lbs. (740 kg) |
| Control Type | Position |
Weight
| Weight w/ Ag Tires w/ ROPS | 2,734 lbs. (1,240 kg) |
