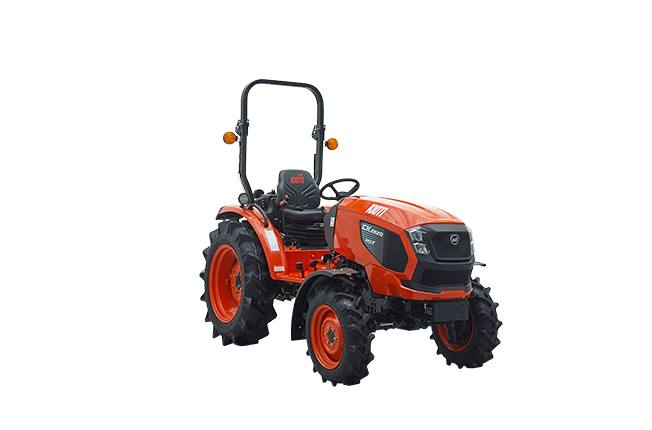

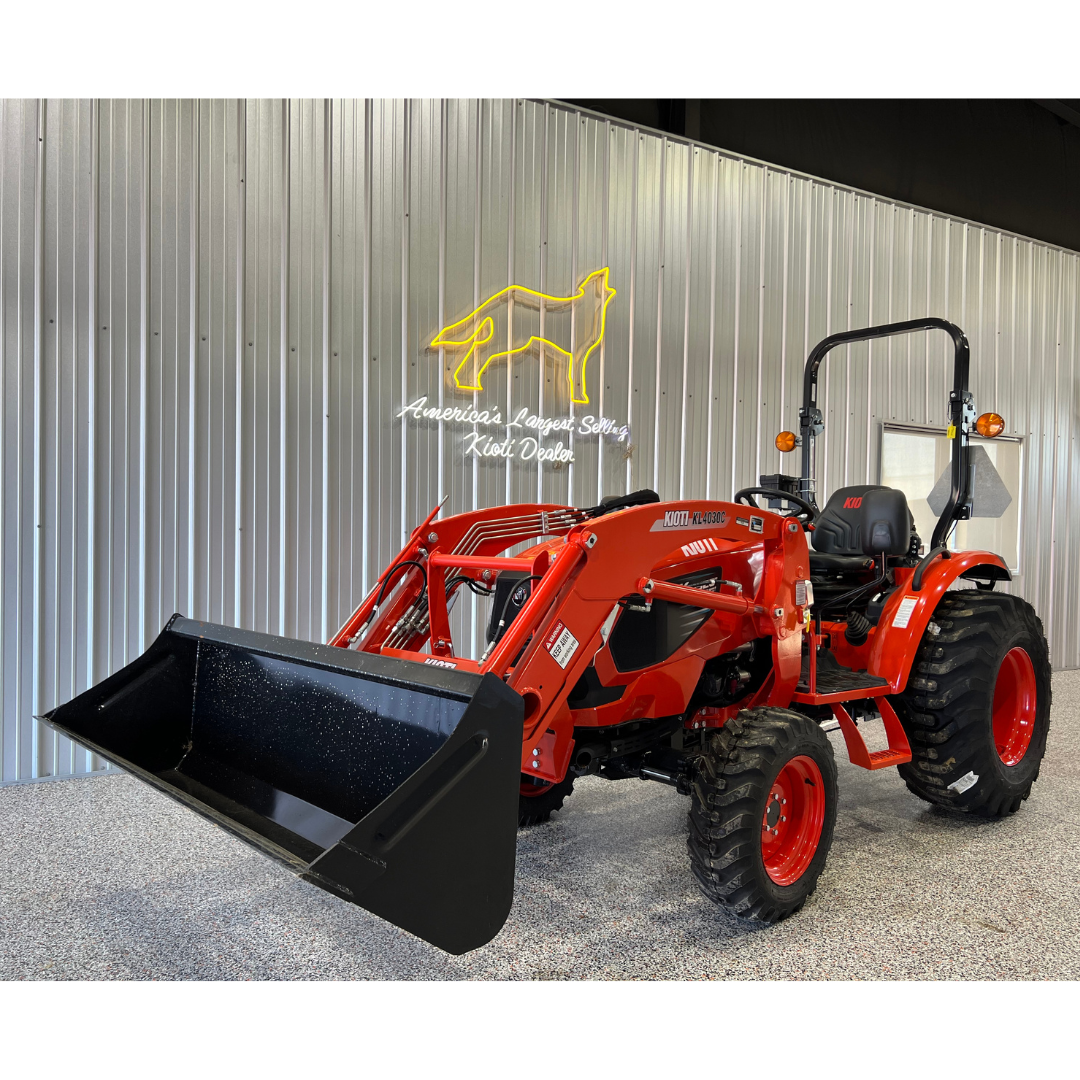

KIOTI CK3520SE with Factory Loader
615-442-6738
sales@lsetractor.com
Tractor and loader from $30,443.00 PLUS many discounts, factory incentives, and low APR financing options!
Due to restrictive pricing policies by manufacturers, these are all MSRP. For our most competitive pricing, please give us a call or submit an inquiry and we will be happy to give you our low pricing that we are known for!
HST TRANSMISSION AVAILABLE
KIOTI KB2475L SUBFRAME MOUNTED BACKHOE FROM $9,759.00
INTERESTED? Fill out the form below and our sales team will be in contact!
Share this with your friends!
Main Features
- Engine Gross Power: 34.9 hp (26 kW)
- PTO Type: Independent
- Transmission Type: Synchro Shuttle
- Shuttle: Dry Single Stage
- KIOTI Diesel Engine
- Power Steering
- Single Lever Joystick
- 3-Point Control Lever
- NOTE: Front fenders not available in North America.
Transmission
| Transmission Type | Synchro Shuttle |
| No. of Travel Speeds - Forward / Reverse | 12X12 |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 1.03 mph (1.65 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 15.53 mph (25.0 km/h) |
Power Take-Off (PTO)
| PTO Type Transmission | Independent |
| PTO Power | 30.9 hp (23 kW) |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Dry Single Stage |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 120.87 in. (3,070 mm) |
| Width | 54.53 in. (1,385 mm) |
| Height from Top of ROPs | 92.91 in. (2,360 mm) |
| Wheelbase | 65.7 in. (1,670 mm) |
| Ground Clearance | 13.39 in. (340 mm) |
| Front Tread Ag Tires - Min | 48.2 in (1,225 mm) |
| Rear Tread Ag Tires - Min | 47.04 in. (1,210 mm) |
| Min. Turning Radius w/ Brake | 107.48 in. (2,730 mm) |
Hydraulics
| Total Pump Flow | 11.3 gpm (42.9 L/min) |
3-Point Hitch
| Standard Category | Category 1 |
| Max. Lift Capacity | 1,631 lbs. (740 kg) |
| Control Type | Position |
Weight
| Weight w/ Ag Tires w/ ROPs | 2,906 lbs. (1,318 kg) |
