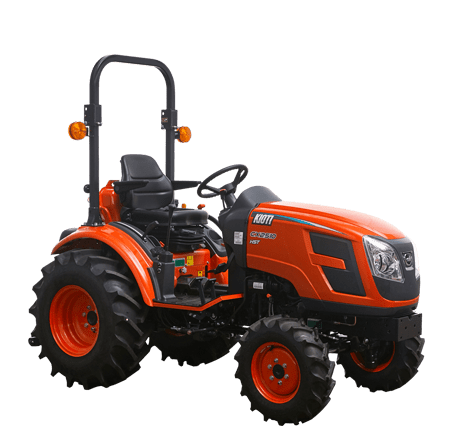

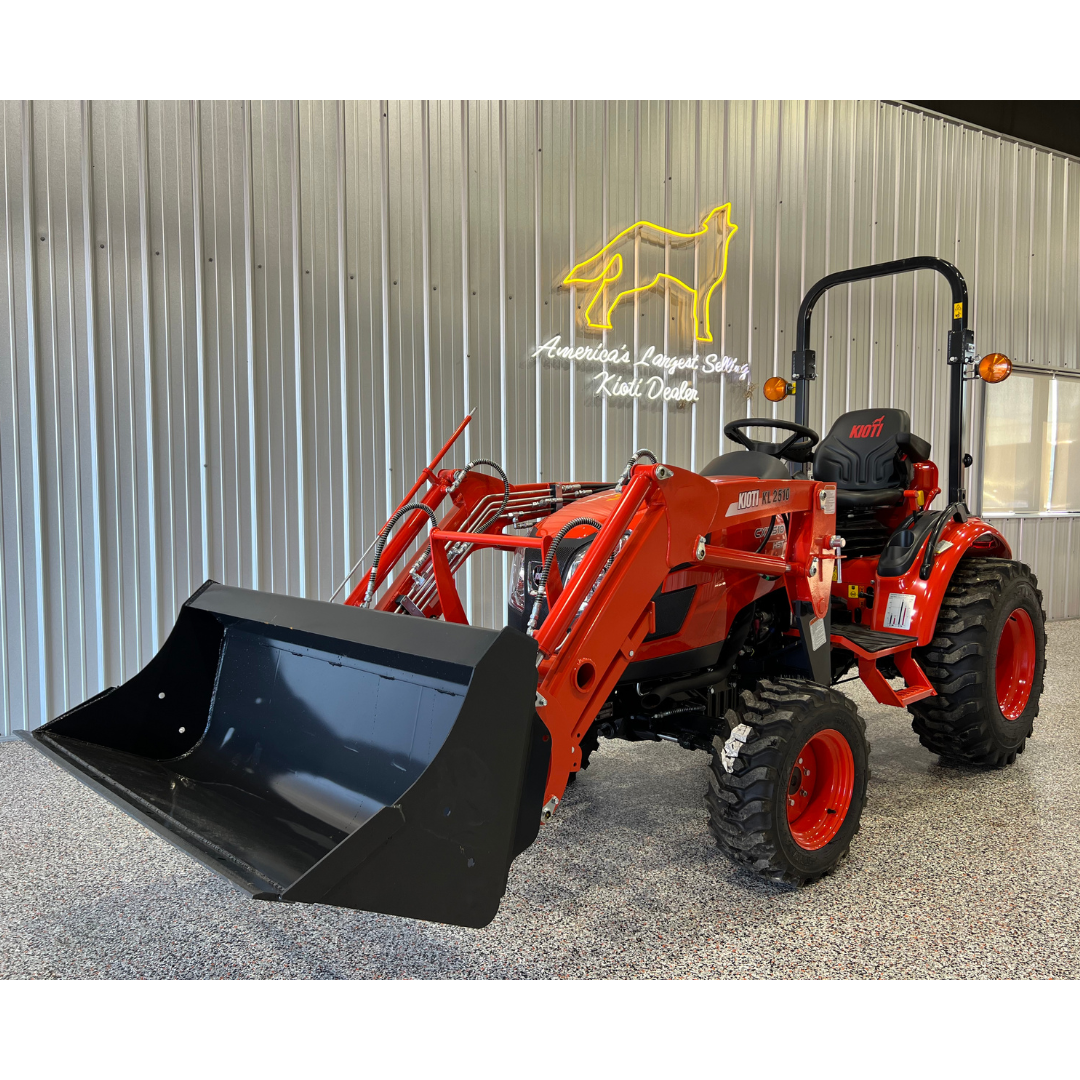

KIOTI CX2510 with Factory Loader
615-442-6738
sales@lsetractor.com
Tractor and loader from $21,164.00 PLUS many discounts, factory incentives, and low APR financing options!
Due to restrictive pricing policies by manufacturers, these are all MSRP. For our most competitive pricing, please give us a call or submit an inquiry and we will be happy to give you our low pricing that we are known for!
HST TRANSMISSION AVAILABLE
KIOTI KB2465 SUBFRAME MOUNTED BACKHOE FROM $8,905.00
KIOTI KM2560 MID MOUNTED MOWER: $4,025.00
INTERESTED? Fill out the form below and our sales team will be in contact!
Share this with your friends!
Main Features
- Engine Gross Power: 24.5 hp (18.2 kW)
- PTO Type: Transmission
- Transmission Type: Manual
- Shuttle: Dry Single
- Tilt Wheel with Power Steering
- Illuminated Dashboard
- Comfortable Seat with Suspension
- Single Lever Joystick
- USB and Power Socket
- Rear PTO with adjustable three-point hitch
- High Capacity Hydraulic Pump
Transmission
| Transmission Type | 6X2 Manual Transmission |
| Main Gear | Manual |
| No. Travel Speeds | 6F/2R |
| Min. Travel Speed | 0.75 mph (1.22 km/h) |
| Max. Travel Speed | 10.8 mph (19.07 km/h) |
Power Take-Off (PTO)
| PTO Type Transmission | Manual |
| PTO Power | 19.3 hp (14.4 kW) |
| Rear PTO Speeds | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | Dry Single Stage |
Dimensions w/ Ag Tire
| Length w/ 3-point | 109.08 in. (2,790 mm) |
| Width | 49.4 in. (1,256 mm) |
| Height from Top of ROPS | 82.8 in. (2,103 mm) |
| Wheelbase | 59.8 in. (1,520 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires - Min | 38.1 in. (968 mm) |
| Rear Tread Ag Tires - Min | 37.4 in. (951 mm) |
| Min. Turning Radius w/Brake | 8.3 ft. (2.53 m) |
Hydraulics
| Total Pump Flow | 11.3 gpm (42.9 L/min) |
3-Point Hitch
| Standard Category | Category 1 |
| Lift Capacity, 24" aft of hitch | 1,203 lbs (546 kg) |
| Position |
