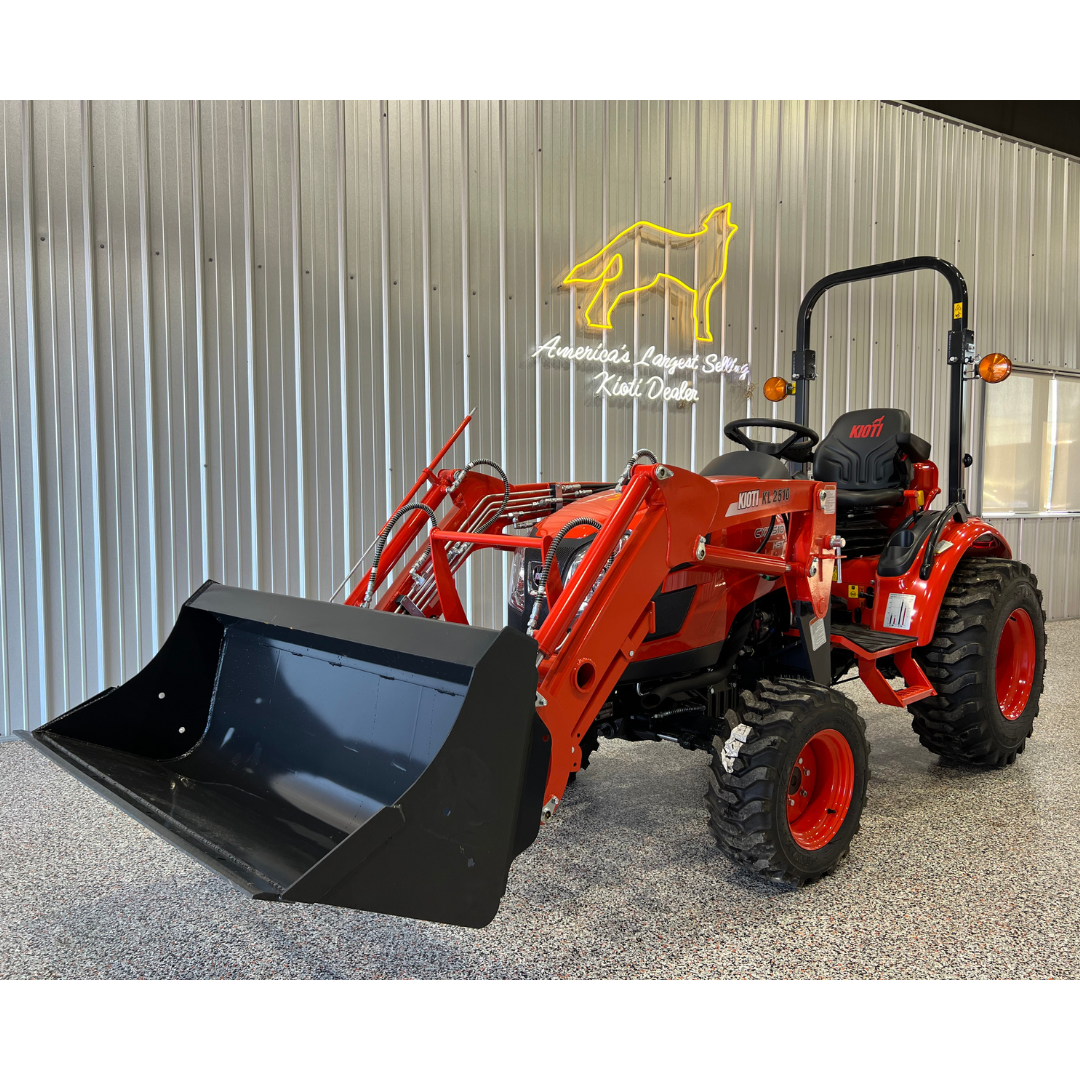

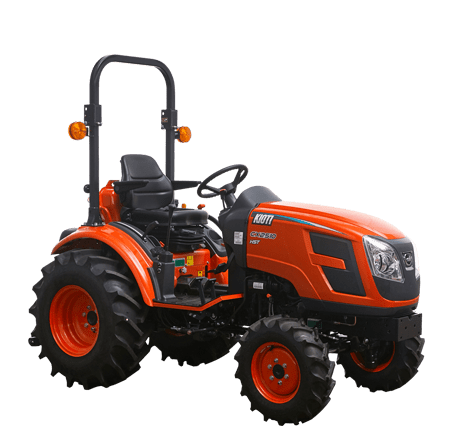

KIOTI CX2510 HST with Factory Loader
615-442-6738
sales@lsetractor.com
Tractor and loader from $22,951.00 PLUS many discounts, factory incentives, and low APR financing options!
HST TRANSMISSION AVAILABLE
KIOTI KB2465 SUBFRAME MOUNTED BACKHOE FROM $8,905.00
KIOTI KM2560 MID MOUNTED MOWER: $4,025.00
INTERESTED? Fill out the form below and our sales team will be in contact!
Share this with your friends!
Main Features
- Engine Gross Power: 24.5 hp (18.2 kW)
- PTO Type: Live
- Transmission Type: Hydrostatic
- Shuttle: Dry Single
- Tilt Wheel with Power Steering
- Illuminated Dashboard
- Comfortable Seat with Suspension
- Single Lever Joystick
- USB and Power Socket
- Cruise Control
- Twin Pedals
- Hydrostatic Transmission
- Rear PTO with adjustable three-point hitch
- High Capacity Hydraulic Pump
Transmission
| Transmission Type | Hydrostatic |
| Main Gear | Hydostatic |
| No. Travel Speeds | Infinite/2R |
| Min. Travel Speed | 0 mph (0 km/h) |
| Max. Travel Speed | 10.7 mph (21.74 km.h) |
Power Take-Off (PTO)
| PTO Type Transmission | Live |
| PTO Power | 18.8 hp (14 kW) |
| Rear PTO Speeds | 540 rpm |
| Mid PTO Speeds | 2,000 rpm (Optional) |
Brakes and Clutch
| Brake | Wet Disc Type |
| Clutch | Dry Single |
Dimensions w/ Ag Tire
| Length w/ 3-point | 109.08 in. (2,790 mm) |
| Width | 49.4 in. (1,256 mm) |
| Height from Top of ROPS | 82.8 in. (2,103 mm) |
| Wheelbase | 59.8 in. (1,520 mm) |
| Ground Clearance | 13.4 in. (340 mm) |
| Front Tread Ag Tires - Min | 38.1 in. (968 mm) |
| Rear Tread Ag Tires - Min | 37.4 in. (951 mm) |
| Min. Turning Radius w/Brake | 8.3 ft. (2.53 m) |
Hydraulics
| Total Pump Flow | 11.3 gpm (42.9 L/min) |
3-Point Hitch
| Standard Category | Category 1 |
| Lift Capacity, 24" aft of hitch | 1,203 lbs (546 kg) |
| Control Type | Position |
