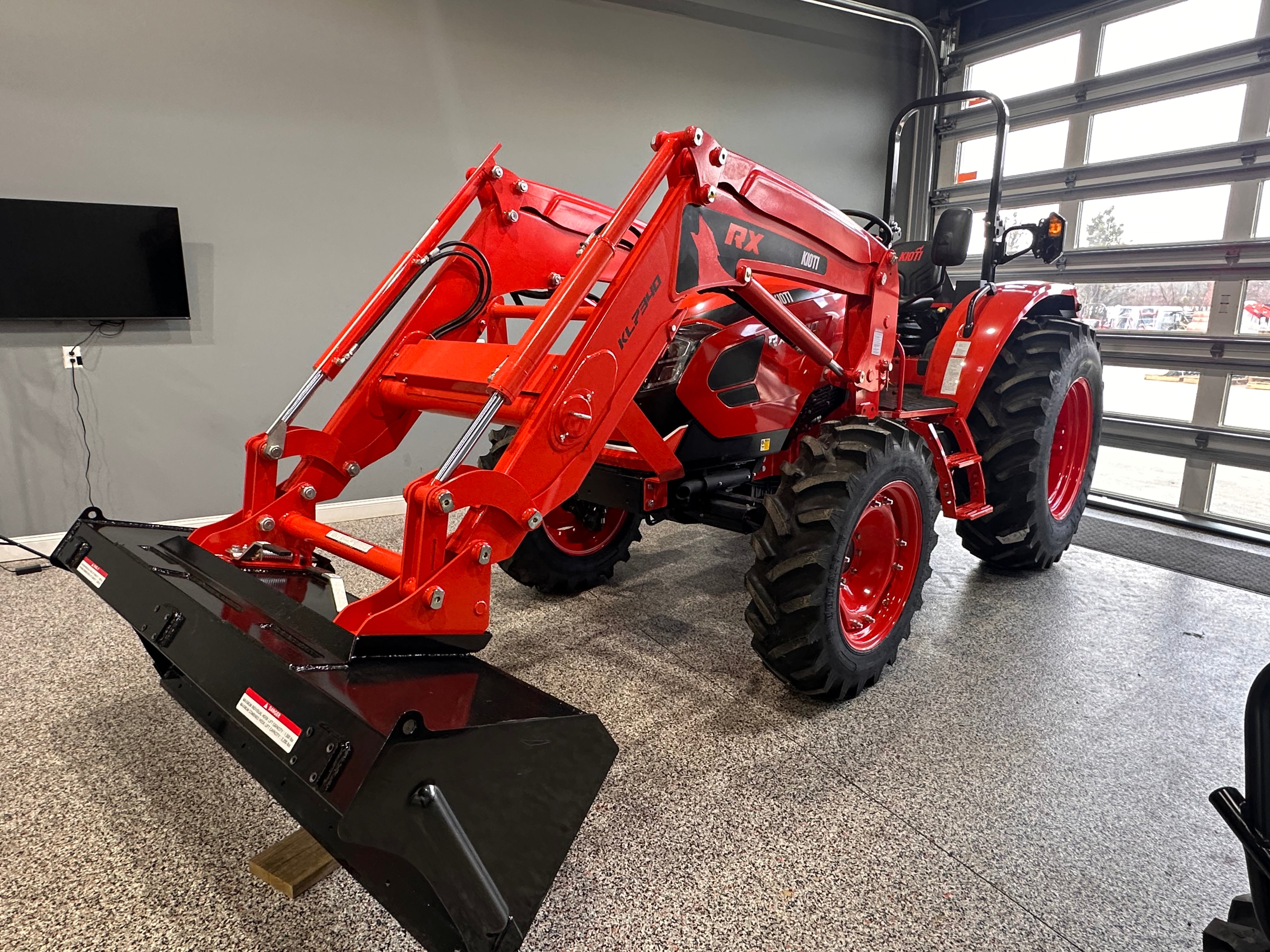

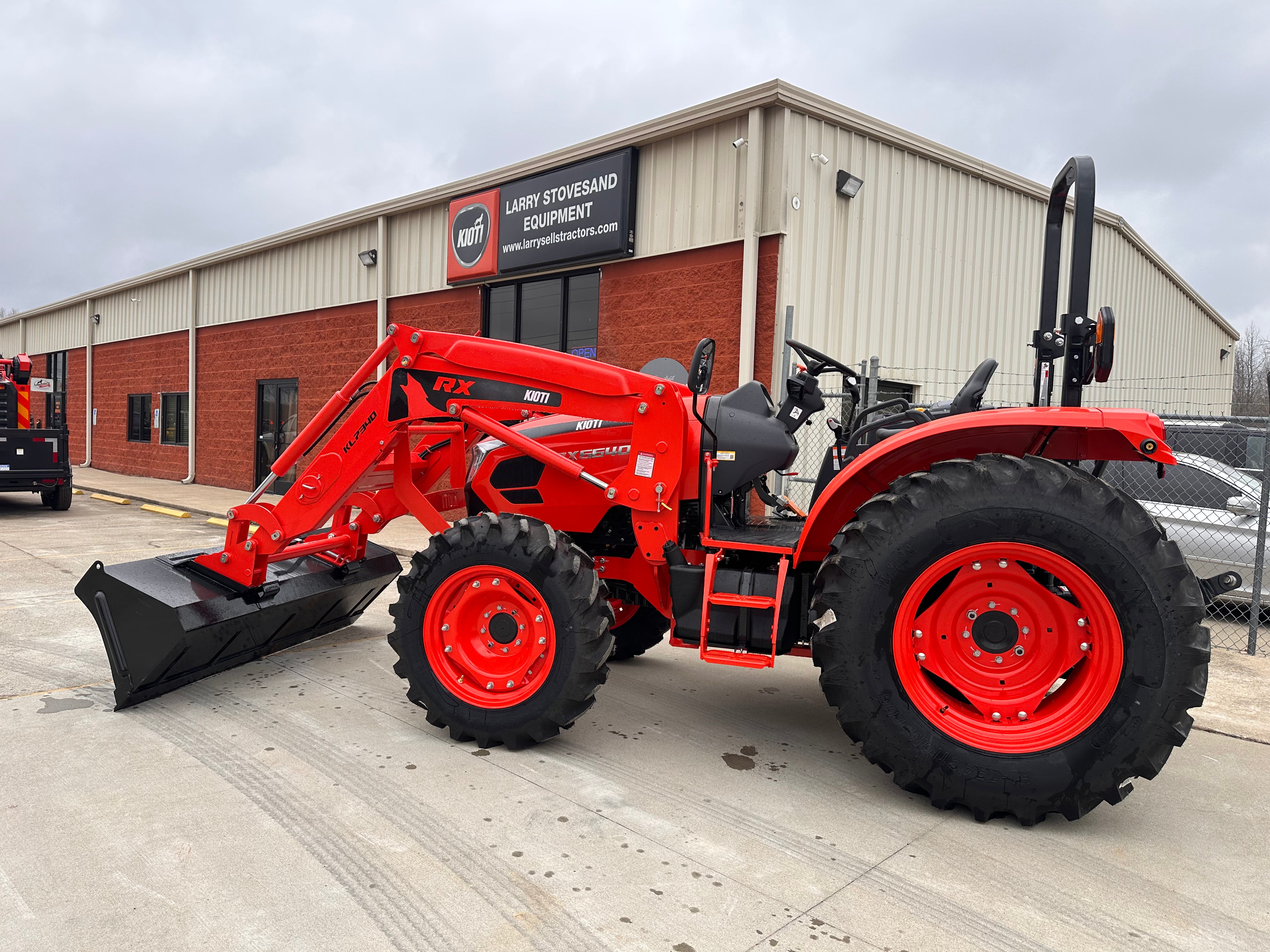

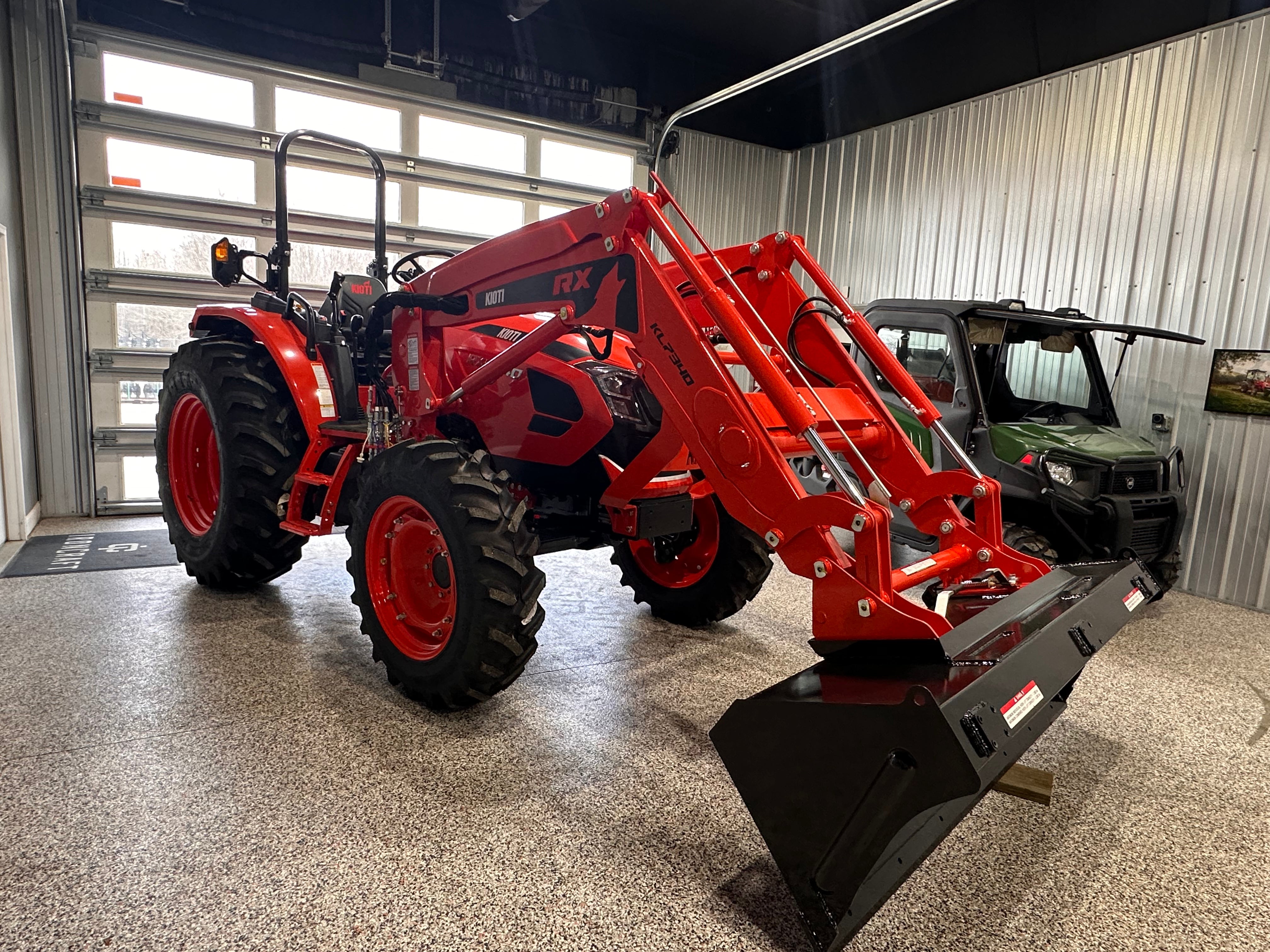

KIOTI RX7340P Power Shuttle w/ROPS with Factory Loader
615-442-6738
sales@lsetractor.com
Contact us for pricing!
Due to restrictive pricing policies by manufacturers, these are all MSRP. For our most competitive pricing, please give us a call or submit an inquiry and we will be happy to give you our low pricing that we are known for!
Share this with your friends!
Main Features
- Engine Gross Power: 73 hp (54.5 kW)
- PTO Type: Independent
- Transmission Type: Power Shuttle
- Shuttle: Wet Disc
- CRDI diesel engine with Daedong ECO Technology
- Power Shuttle Transmission
- Category II 3-Point Hitch
- Foldable ROPS
- Rear Differential Lock
- Single Lever Joystick
- Remote Hydraulic Valves
- Independent PTO with Auto and Manual Selection
Transmission
| Transmission Type | Power Shuttle |
| Shuttle | Synchronized |
| Main Gear | Synchronized |
| No. of Travel Speeds - Forward / Reverse | 12F/12R |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 1.01 mph (1.63 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 23.9 mph (38.5 km/h) |
Power Take-Off (PTO)
| PTO Type Trans | Independent |
| PTO Power | 60.9hp (45.4 kW) |
| Rear PTO Speeds (1st) | 540 rpm / 540E rpm |
Brakes and Clutch
| Brakes | Wet Multi Disc |
| Clutch | Wet Disc |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 150.3 in. (3,817 mm) |
| Width | 82.1 in. (2,085 mm) |
| Height from Top of ROPS | 114.8 in. (2,917 mm) |
| Wheelbase | 835.4 in. (2,170 mm) |
| Ground Clearance | 15.7 in. (400 mm) |
| Front Tread Ag Tires - Min | 62.9 in. (1,597 mm) |
| Rear Tread Ag Tires - Min | 63.9 in. (1,623 mm) |
| Turning Radius w/ Brake | 12.8 ft. (3.9 m) |
Hydraulics
| Pump | Tandem Gear |
| Pump Capacity (Max. Flow Rate) | 20.6 gpm (78 L/min) |
3-Point Hitch
| Standard Category | Category II |
| Lift Capacity, 24" aft of hitch, lb (kg) | 4327.7 lbs. (1,963 kg) |
| Control Type | Electronic Control w/ Dual External Lift Cylinders |
Weight
| Weight with Ag Tires | 6252.3 lbs. (2,836 kg) |
